Chapter 4: Dynamic Web Pages via JavaScript
As you learned in Chapter 2 and
Chapter 3, the World Wide Web is a vast,
interconnected network of documents that effectively integrates text and media
such as images, movies, and sounds. The HyperText Markup Language (HTML)
consists of tags that identify the contents of a page and provide formatting
information for the Web browser. Using HTML tags, it is possible to develop
attractive, information-rich pages for the Web. However, HTML alone can only
produce static pages, i.e., pages that always look and behave the same
each time they are loaded into the browser.
In 1995, Netscape Communications
Corporation developed a simple programming language that could be used
to augment Web pages and make them dynamic. This language would
eventually be known as JavaScript, acknowledging its close ties to the
general purpose programming language Java. Unlike Java, however, JavaScript
is a relatively simple language with features designed for easy integration
into Web pages. Code written in JavaScript can be embedded in a Web page and
automatically executed by the browser when the page is loaded. Utilizing the
expressive power of JavaScript, Web pages can be made to interact with the
user and vary their content based on a variety of events.
In this chapter, you will begin augmenting your own Web pages with
JavaScript, focusing first on simple techniques for interacting with the user.
Dynamic Web pages
If you have spent any time surfing the Web, you have no doubt encountered
pages that change content and interact with you. At commercial sites, banner
ads may cycle as you view the site, or may react when you place the mouse
over them. Search engines prompt you for topics and then retrieve information
based on your response. These are examples of dynamic pages since their
behavior changes each time they are loaded or as events occur. Throughout this
text, you will learn to develop dynamic pages with similar capabilities using
JavaScript. For now, you will start with simple Web pages that are able to
interact with the user and display dynamic content based on that interaction.
For example, suppose you wanted to create a Web page that customized itself
by asking the user their name and then incorporating that name within the text
of the page. The following Web page accomplishes this task by utilizing simple
features of JavaScript, which will be explained below.
|
<![CDATA[
<html>
<!-- greet.html Dave Reed -->
<!-- Web page that displays a personalized greeting. -->
<!------------------------------------------------------>
<head>
<title> Greetings </title>
</head>
<body>
<script type="text/javascript">
firstName = prompt("Please enter your name", "");
document.write("Hello " + firstName + ", welcome to my Web page.");
</script>
<p>
Whatever else you want to appear in your Web page...
</p>
</body>
</html>
]]>
|
JavaScript statements are commands that tell the browser to perform
specific actions, such as prompting the user for their name or displaying a
message within the page. The simplest way to add dynamic content to a Web
page is to directly embed JavaScript statements within the page using SCRIPT
tags. Statements embedded between the tags
<script language="JavaScript"> and </script>
are recognized by the Web browser as JavaScript code, and are automatically
executed (i.e., the actions specified by the statements are carried out in
order) when the page is loaded. In this example, there are two JavaScript
statements within the SCRIPT tags, which combine to produce the interactive
behavior described above.
- The first JavaScript statement within the SCRIPT tags performs the task
of asking the user for their name and remembering the name for future reference.
<![CDATA[
firstName = prompt("Please enter your name", "");
]]>
This type of statement is known as an assignment statement since
its purpose is to assign a name to particular value so that it can be referred
to throughout the page. In programming terminology, a variable is a
name that is given to a value so that it can be remembered and referred to
later. In this example, the user is prompted to enter their name and that
name is assigned to the variable firstName, for later reference.
The user is prompted for their name via a call to the
predefined prompt function. In simple terms, a function is
a collection of JavaScript statements that carry out a specific task, and a
call to that function causes those statements to be executed. (Formal
definitions of function and function call will be provided in Chapter 5.)

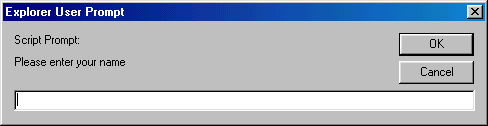

Here, the call to prompt causes a dialog box, a separate window where a use
can enter values, to appear:
The white rectangle in the dialog box is the input area where the
user can enter text, then click on the OK button when input is complete. Note
that the prompt message that appears within the dialog box,
Please enter your name, is the text listed first inside the call to
prompt. The prompt message can be any sequence of characters
enclosed in quotes, known as a string in JavaScript. Note also that
the call to prompt has a second string value listed, which is the default
value to be initially displayed in the input box. In this case, the default
value is the empty string "", so the input area initially appears empty.
In general, the user can be prompted for any value and that value remembered
using a JavaScript assignment statement of the form:
<![CDATA[
variable = prompt("PROMPT STRING", "");
]]>
- The second JavaScript statement in the above example displays a message
in the page that incorporates the user's name.
<![CDATA[
document.write("Hello " + firstName + ", welcome to my Web page.");
]]>
This type of JavaScript statement is known as a write statement
since it utilizes the predefined document.write function to display
the message in the Web page. The message displayed by document.write
can be a string (sequence of characters in quotes), or a combination of
strings and variables connected with '+', which concatenates (joins end-to-end)
the pieces together. Wherever a variable name appears in the message, its
corresponding value will be substituted. For example, if "Dave"
had been entered and stored in the variable firstName, then the
above write statement would write the message
<![CDATA[
Hello Dave, welcome to my Web page.
]]>
into the Web page. When the page is displayed in the browser, this message
will appear along with any other text in the page.
In general, any message can be written and displayed in a Web page using a
JavaScript write statement of the form:
<![CDATA[
document.write("MESSAGE TO BE DISPLAYED");
]]>
| Classic errors to avoid...
You may note that each statement in the above example ends with a semi-colon.
Technically, every JavaScript statement is required to end with a semi-colon,
although browsers tend to be forgiving if you occasionally omit them. Since
there are times where a missing semi-colon can cause confusion or even an
error, you should be careful to always include them in your statements.
|
EXERCISE 4.1:
Cut-and-paste the greet.html text into a new Web page and verify that
it behaves as described. In particular, what is displayed if the user clicks
OK without entering a value in the input area?
Since the output produced by a write statement is embedded in the Web page and
displayed by the browser just like any other text, that output can be
formatted using HTML tags. For example, assuming the user entered "Dave"
for their name, the write statement
<![CDATA[
document.write("Hello <i>" + firstName + "</i>, welcome to my Web page.");
]]>
would write the text
<![CDATA[
Hello <i>Dave</i>, welcome to my Web page.
]]>
into the HTML document, which is then displayed by the browser as
Hello Dave, welcome to my Web page.
Note that within the output message, the <i></i> tags
appear inside the quotes as they are part of the text being written to the Web
page. In contrast, the variable firstNameappears outside of quotes,
ensuring that the browser will recognize it as a variable and substitute the
corresponding value. If you mistakenly placed a variable inside quotes in an
output message, the variable name would be displayed as opposed to its value.
EXERCISE 4.2:
Modify your greet.html page so that the the user's name appears in
bold, and the output is broken across two lines. For example:
Hello Dave,
welcome to my Web page.
| Classic errors to avoid...
As you completed the previous exercise, adding new JavaScript code to the
greet.html page, it is very likely that at some point you made a
mistake. You might have forgotten the closing quotes on the message or
misspelled document.write. Such errors in the format of statements,
be it HTML or JavaScript, are known as syntax errors. For the most
part, HTML syntax errors are easy to spot and correct: usually the browser
just ignores malformed tags and continues on with the page. In contrast,
syntax errors in JavaScript code can sometimes be difficult to identify.
Fortunately, modern Web-browsers attempt to assist you in identifying
and correcting JavaScript syntax errors. Using Internet Explorer, you can set
preferences so that a JavaScript syntax error will cause a window to appear
with an error message identifying the cause of the error. Under the Tools
menu, select Internet Options and click on the Advanced tab. Then, make sure
the boxes labeled "Display a notification about every script error" and
"Disable script debugging" are checked.
Using a Netscape browser, an error message may not
automatically appear, however, the user can open the JavaScript Console to see
detailed error messages. The Netscape JavaScript Console can be opened from
the Tools menu, or by typing "javascript:" in the Address box.
|
Variables names
As the greet.html page demonstrates, a variable can be used to
represent a value, such as a name entered by the user. For the most part,
you can choose any name you wish to represent a value. Technically, a variable
name can be any sequence of letters, digits, and underscores that starts with
a letter. For example, all of the following are valid JavaScript variable names:
<![CDATA[
tempInFahr SUM current_age Sum2Date x
]]>
Note that JavaScript is case-sensitive, meaning that capitalization does
matter. Consequently, names such as sum, Sum, and SUM
each represent different variables. Furthermore, there are some words that are
reserved by JavaScript and Web browsers for their own use, and so should not
be used for variables. Relax: this table seems big, but most of these words
are technical and you would never attempt to use them as variables anyway!
| Reserved words that shouldn't be used as variables
|
|---|
|
<![CDATA[
alert Element JavaArray onload status
Anchor else JavaClass onunload String
Area escape JavaObject open submit
Array eval JavaPackage opener sun
assign false length Option taint
blur FileUpload Link Packages Text
Boolean focus Location parent Textarea
Button for location parseFloat this
break Form Math parseInt top
CheckBox Frame MimeType Password toString
class frames name Plugin true
clearTimeout function navigate prompt typeof
close Function Navigator prototype unescape
closed getClass netscape Radio untaint
confirm Hidden new ref valueof
continue History Number Reset void
Date if null return while
defaultStatus Image Object scroll window
delete in onblur Select Window
document isNaN onerror self with
Document java onfocus setTimeout
]]>
|
EXERCISE 4.3:
Each of the following is invalid as a JavaScript variable name. Explain why.
<![CDATA[
2hotforU salary$ two words "sum_to_date" name
]]>
EXERCISE 4.4:
Modify your greet.html page so that it prompts the user twice, once
for their first name and again for their last name. You will need to use a
second variable to store the last name: choose a variable name that suggests
its purpose, such as lastName or surname. Once both names
have been read in, the page should display the following message (with the
appropriate names substituted, of course).
Hello Dave Reed,
or may I just call you Dave?
| Classic errors to avoid...
The case-sensitivity of variables in JavaScript can lead to subtle errors.
For example, suppose you assigned a value to a variable named firstName,
then later mistakenly assigned a new value under the name firstname.
<![CDATA[
firstName = prompt("Enter your name", "");
// other code here
firstname = prompt("Enter another name", "");
]]>
Despite the apparent similarity of these two variable names, the browser
would treat them as being independent. The second assignment would be assign
a value to firstname, leaving firstName unchanged. In
addition to the confusion caused by mistyped variable names, an error will
occur if an attempt is made to access the value of the mistyped variable
before assigning it a value. For example:
<![CDATA[
lastName = prompt("Enter your last name", "");
// other code here
document.write(lastname);
]]>
An error would occur when this code is executed, since the variable
lastname has not had a value assigned to it (despite the fact
that lastName has). The error message would identify the write
statement as the source of the error and state
that "lastname is not defined."
|
Variables and memory cells
In the abstract, a variable is a name that represents some value. In
practice, this is accomplished by associating with each variable a piece
of memory, known as a memory cell. Each memory cell inside the computer stores
the value of its corresponding variable.
In JavaScript, a value is assigned to a variable (and thus stored in its
associated memory cell) via an assignment statement (using '='). For example,
in the greet.htmlpage above, the variable firstName is
assigned the value obtained by the prompt function, as entered by
the user. Values can be directly assigned to variables as well, such as
assigning the variable color to have the value "green".
<![CDATA[
firstName = prompt("Please enter your name", "");
color = "green";
]]>
Assignments to variables can be visualized by drawing a box to represent
the memory cell, labeled by the variable name. When an assignment is made,
the assigned value is stored in the memory cell.
Once you have assigned a value to a particular variable, any reference to
the variable name evaluates to the value stored in its associated memory cell.
That is, the value stored in the memory cell is substituted for the variable name.
For example, after assigning color to have the value "green",
the following two write statements are equivalent:
<![CDATA[
document.write("My favorite color is green.");
document.write("My favorite color is " + color + ".");
]]>
It is even possible to assign a value to a variable more than once.
Each new assignment overwrites the old contents of the memory cell with
the new value being assigned. For example, the JavaScript code in the Web
page below prompts the user for their favorite food, stores their response
in the variable food, and then displays a message containing that food.
It then prompts the user for their least favorite food and similarly
displays it. Since the favorite food is no longer needed, the same
variable food can be reused, overwriting the old value.
|
<![CDATA[
<html>
<!-- food.html Dave Reed -->
<!-- Web page that prompts and displays food preferences. -->
<!---------------------------------------------------------->
<head>
<title> Who’s Hungry? </title>
</head>
<body>
<script type="text/javascript">
food = prompt("What is your favorite food?", "chocolate");
document.write("Your favorite food is " + food + "<br />");
food = prompt("What is your least favorite food?", "brussels sprouts");
document.write("Your least favorite food is " + food + "<br />");
</script>
</body>
</html>
]]>
|
EXERCISE 4.5:
Cut-and-paste the food.html text into a new Web page and verify
that it behaves as described. In particular, what is displayed if the user
clicks OK without entering values at the prompts?
EXERCISE 4.6:
What would happen if the second and third statements in the above code were
swapped? That is, what if the two prompts were executed before the two
write statements? Modify the code in food.html to verify your prediction.
| Designer secrets...
You may have noticed that the JavaScript code you have written so far
tends to follow a certain pattern. This should not be surprising since the
tasks you have performed in this chapter have been similar in nature.
In the case of greet.html, the page needed to prompt the user for
their name(s) and incorporate the name(s) in the text of the page.
Similarly, the food.html page needed to prompt the user for
favorite and least favorite foods and incorporate them in the text of the page.
Whenever you are writing a page that needs to get information from the
user and incorporate that information in the page, you will need a sequence
of statements that prompt the user for input values and store them in
variables, followed by one or more write statements that display messages
involving the inputs. Thus, the following general pattern holds:
<![CDATA[
<script type="text/javascript">
input1 = prompt("PROMPT MESSAGE", "");
input2 = prompt("PROMPT MESSAGE", "");
. . .
inputN = prompt("PROMPT MESSAGE", "");
document.write("MESSAGE INVOLVING input1, …, inputN");
</script>
]]>
|
As another example, consider the following Web page, which utilizes
JavaScript code to display a verse of the children's song
"Old MacDonald had a Farm." The user is prompted for the name of an animal
and the sound it makes, and those words are then incorporated into the
write statements that display the verse.
|
<![CDATA[
<html>
<!-- oldmac.html Dave Reed -->
<!-- Web page that displays a verse of Old MacDonald. -->
<!------------------------------------------------------>
<head>
<title> Old MacDonald </title>
</head>
<body>
<script type="text/javascript">
animal = prompt("Enter a kind of animal:", "cow");
sound = prompt("What kind of sound does it make?", "moo");
document.write("<p>Old MacDonald had a farm, E-I-E-I-O.<br />");
document.write("And on that farm he had a " + animal + ", E-I-E-I-O.<br />");
document.write("With a " + sound + "-" + sound + " here, and a " +
sound + "-" + sound + " there,<br />");
document.write(" here a " + sound + ", there a " + sound +
", everywhere a " + sound + "-" + sound + ".<br />");
document.write("Old MacDonald had a farm, E-I-E-I-O.</p>");
</script>
</body>
</html>
]]>
|
Note that this page again follows the general pattern of prompting the user
for inputs (here, the name of an animal and the sound it makes) and then
displays messages that include those inputs. In this case, the calls to
prompt utilize default values, so that if the user clicks OK in the
dialog box without entering anything, then "cow" and "moo" will be used.
Also note that two of the write statements span multiple lines. This is
perfectly legal as long as you don't split a string. That is, the opening
and closing quotes for a string must appear on the same line.
EXERCISE 4.7:
Cut-and-paste the oldmac.html text into a new Web page and verify
that it behaves as described.
EXERCISE 4.8:
Modify your oldmac.html page so that it displays three verses of
the song, prompting the user for an animal and sound between each verse.
Specifically, cut-and-paste three copies of the code for reading in the
inputs and displaying the verse (within the same pair of SCRIPT tags).
The same variables can be used for each verse, since each assignment to a
variable overwrites the previous value. The calls to prompt should
utilize different default values for each verse, however.
In addition to storing values read in from the user, a common use of
variables is to store values that are referred to over and over. If a variable
is used repeatedly in a section of code, changing a single assignment to
that variable can automatically affect the entire page. For example, you may
note that the refrain "E-I-E-I-O" appears several times in the
Old MacDonald verse. Depending on the source, this refrain may be spelled
differently, such as "Eeyigh-Eeyigh-Oh". If this was something you might
want to change, you could use a variable to store the desired spelling and
then use that variable in the write statements. In effect, all of the verses
could be changed simply by changing the single assignment to the variable.
EXERCISE 4.9:
Modify your oldmac.html page so that it stores the refrain in a
variable and then uses that variable in the write statements. That is, add
the assignment
<![CDATA[
refrain = "E-I-E-I-O";
]]>
at the very top of the JavaScript code (just after the opening SCRIPT tag)
and modify the write statements as in the following:
<![CDATA[
document.write("<p>Old MacDonald had a farm, " + refrain + ".<br />");
]]>
Since the spelling assigned to the refrain variable is the same as
before, the behavior of the page should not change.
EXERCISE 4.10:
Modify your oldmac.html page so that the alternate spelling
"Eeyigh-Eeyigh-Oh" is used in all of the verses. Hint: due to the
use of the variable refrain, this modification should only require a
minimal change to your code.
| Classic errors to avoid...
When writing JavaScript statements involving strings and variables, there
are two types of errors that commonly occur. Learning to recognize and
understand each type of error can save you considerable amounts of time
and frustration.
- Error: unterminated string literal
- This error message appears when the browser encounters the beginning of a
string but fails to find the closing quote on the same line. A write statement
can be broken across multiple lines using '+', but each piece of the message
(i.e., each individual string) must be complete on a line. For example,
<![CDATA[
document.write("This example is illegal since the
string is broken across lines");
document.write("This example is ok, since the message " +
"is broken into two distinct strings");
]]>
- Error: missing ) after argument list
- This error message appears when the pieces of a message are not connected
correctly (and thus the browser is confused and looking to end the write statement).
Most often, the '+' is missing between individual pieces. For example,
<![CDATA[
document.write("The value of x is " x); // error, should be '+' in between
document.write("The value of x is " + x); // OK
]]>
|
Interactive pages
A Mad Lib (Putnam Publishing Group) is a popular party activity where a
potentially humorous story is written down, with blanks in the place of some
of the key words. Before reading the story, the storyteller asks others
present to fill in those blanks. Those selecting the words are only told the
type of word required, and have no other knowledge of the story. This lack
of context in selecting words can result in an entertaining story when the
words are plugged in to the appropriate places. For example, consider the
following beginning to a story.
It was a adjective kind of day when
person's name walked out into the street.
The sky was a deep color , and
same name was walking his new pet
animal ...
Making the following substitutions:
adjective = smarmy
person's name = Chris
color = mauve
animal = gnu
the story would read:
It was a smarmy kind of day when Chris walked out into the street.
The sky was a deep mauve, and Chris was walking his new pet gnu ...
Now that you know how to create interactive Web pages using HTML and
JavaScript, you can write a simple page that generates Mad Libs.
EXERCISE 4.11:
Create a Web page named madlib.html that serves as an interactive
Mad Lib program. Your page should contain JavaScript code that prompts the
user for words to fill in the blanks in a story, and then stores those words
in variables. After having read in all of the words, your code should then
display the story in the Web page, using the values of the variables where
appropriate.
The content of the story can be anything that you like -- be creative!
Your story must meet the following conditions, however.
- It must be at least two paragraphs long.
- It must have at least six missing words.
- At least one of the missing words must be used multiple times in the story.
For example, the person's name was used twice in the sample story above.
- The page should have a title, centered at the top, that includes your name.
Chapter Summary
- JavaScript is a simple programming language for making dynamic Web pages,
i.e., pages that can interact with the user and vary each time they are loaded.
- A JavaScript statement is a command that tells the browser to perform some
specific action, such as prompting the user for a value or displaying text
within the page.
- JavaScript statements can be embedded inside the BODY of a Web page,
embedded between the tags <script language="JavaScript"> and
</script>. When the Web page is loaded, the statements inside
the SCRIPT tags are executed (i.e., the actions specified by those statement
are carried out in order) by the browser.
- An assignment statement is used to assign a name to a value so that that
value can be remembered and referenced throughout the page.
- In simple terms, a function is a collection of JavaScript statements that
carry out some specific task, and a call to a function specifies that those
statements should be executed.
- The predefined prompt function can be used to open a dialog box
and prompt the user to enter a value. The prompt message and the default
value displayed in the dialog box are specified as strings (sequences of
characters enclosed in quotes).
- A write statement is used to display a message within the Web page. A
write statement utilizes the predefined document.write function,
which takes a string or a sequence of strings and variables concatenated
together using '+', and writes the resulting message into the page.
- Since the message displayed by document.write is embedded
directly into the Web page, text within the message can be formatted using
HTML tags.
- A variable is a name that is given to an arbitrary value so that it can
be remembered and referred to later.
- In JavaScript, a variable name can be any sequence of letters, digits,
and underscores starting with a letter. Since JavaScript is case-sensitive,
capitalization matters.
- Each JavaScript variable has a corresponding memory cell that stores
its value. A value is assigned to a variable (and thus stored in the
corresponding memory cell) via an assignment statement (using '=').
